UK Standard Plug Pin | Precision BS 1363 Electrical Component Manufacturing
UK Standard Plug Pins are precision-engineered electrical contact components manufactured in strict accordance with BS 1363-1 standards. Designed for integration into 3-pin molded plugs, rewireable plugs, and power adapters, these pins ensure reliable electrical conductivity, secure terminal connection, and mechanical stability. Available in solid machined or high-speed stamped configurations, our plug pins supply global electrical wiring device manufacturers requiring tight dimensional tolerances, consistent insertion force, and certified material compliance.
-

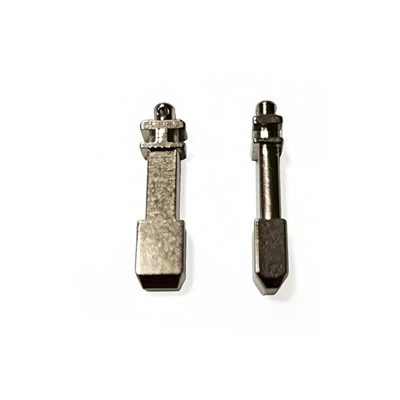

![UK Plug Insert Pin Brass Plug Ground Pin]()
UK Plug Insert Pin Brass Plug Ground PinThe UK Plug Insert Pin Brass Ground Pin is a key conductive component developed by Fangrun for the UK market. It fully complies with the mandatory BS 1363 standard and is commonly used in regions...view more -

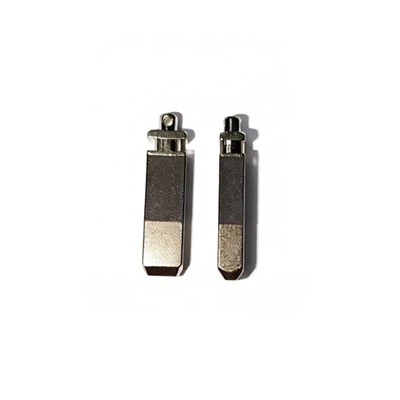

![Brass Copper Plug UK Pin]()
Brass Copper Plug UK PinThe Brass Copper Plug UK Pin is a premium accessory developed by Fangrun to meet the strict safety requirements of the UK market. It is fully compliant with the mandatory BS 1363 UK standard and...view more -

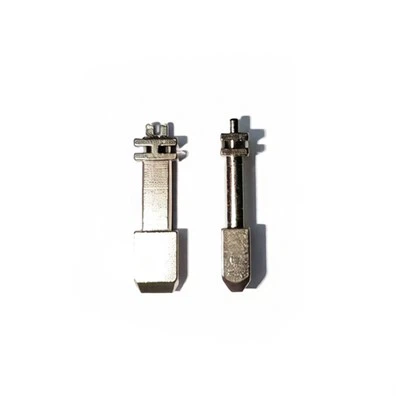

![Plug Insert Pin Brass Copper Plug UK Pin]()
Plug Insert Pin Brass Copper Plug UK PinThe Plug Insert Pin Brass Copper Plug UK Pin is a custom-designed accessory by Fangrun, specifically created to meet the assembly and soldering needs of the UK market. It fully complies with the...view more -

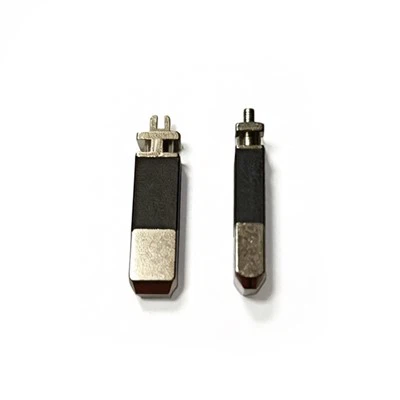

![Reach Brass UK Pin British Plug BS Pin]()
Reach Brass UK Pin British Plug BS PinThe Reach Brass UK Pin British Plug BS Pin is a high-end accessory developed by Fangrun, integrating UK standard soldering assembly requirements with safety standards. Strictly compliant with the...view more -

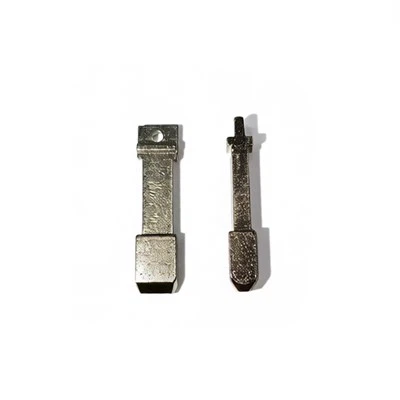

![Brass UK Pin British Plug BS Pin]()
Brass UK Pin British Plug BS PinOur 26.5mm flat-tail UK standard plug accessory is specifically designed for the UK standard market to improve conductivity and stability, fully complying with the UK BS 1363 mandatory standard.view more -

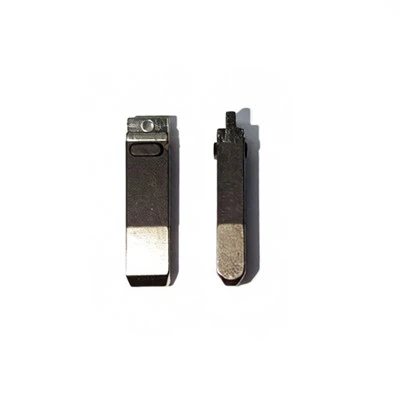

![RoHS Brass Plug Insert Pins]()
RoHS Brass Plug Insert PinsOur RoHS Brass Plug Insert Pins accessory is a high-safety, high-stability product designed for high-power devices in the UK standard market. It strictly complies with the mandatory UK BS 1363...view more -

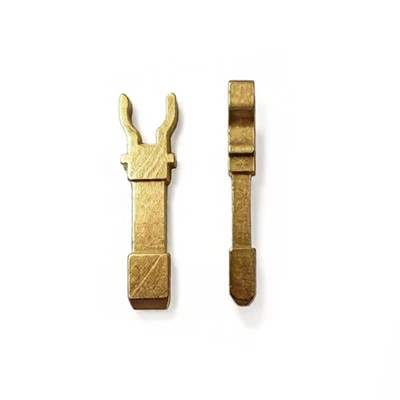

![Copper UK Plug Insert Pins]()
Copper UK Plug Insert PinsThe Copper UK Plug Insert Pins accessory is a customized product developed by our factory to meet the needs of customers in the UK standard market. It strictly complies with the mandatory UK BS...view more -

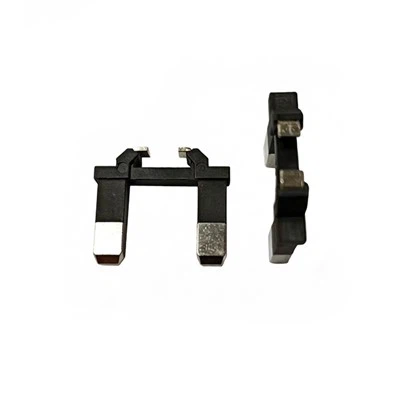

![Brass Plug Insert Insulation Pin]()
Brass Plug Insert Insulation PinOur Brass Plug Insert Insulation Pin accessory is a high-safety product customized for the UK standard market. It strictly complies with the mandatory UK BS 1363 standard and is machined or cut...view more -

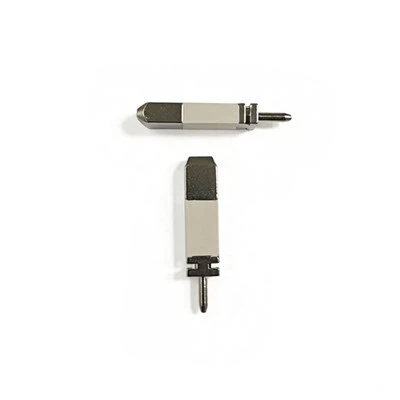

![Electrical Power UK Plug Insert Pin]()
Electrical Power UK Plug Insert PinThe Electrical Power UK Plug Insert Pin accessory is a standardized plug developed by our factory to meet the mold adaptation needs of customers in the UK standard market. It strictly complies...view more -

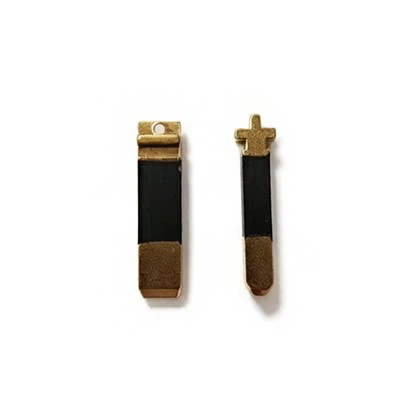

![Brass Insulation Pin for British Plug]()
Brass Insulation Pin for British PlugThe brass Insulation Pin for British Plug is the core conductive component of a British plug, conforming to the mandatory British standard BS 1363. BS 1363 specifies the design, construction, and...view more -

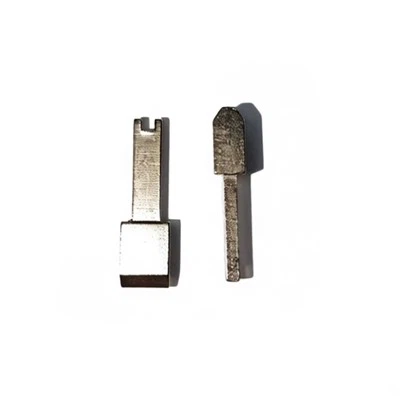

![Brass UK Pin British Plug]()
Brass UK Pin British PlugThe Brass UK Pin British Plug BS Pin is a key accessory manufactured in strict compliance with the British BS 1363 mandatory standard. Its most important feature is its high-safety design, which...view more
Types and Specifications
|
Pin Type |
Material Grade |
Standard Compliance |
Typical Dimensions (mm) |
Finishing / Plating |
|
Live Pin (Sleeved) |
C36000 / H59 Brass |
BS 1363-1 / BS EN 50075 |
Length: 17.5 / Dia: 6.35 |
Nickel Plated (Flash/Matte) |
|
Neutral Pin (Sleeved) |
C36000 / H59 Brass |
BS 1363-1 / BS EN 50075 |
Length: 17.5 / Dia: 6.35 |
Nickel Plated (Flash/Matte) |
|
Earth Pin (Solid/Formed) |
C36000 / H59 Brass |
BS 1363-1 |
Length: 58.0 / Width: 6.35 |
Plain Brass / Nickel Plated |
|
Shuttered Live/Neutral |
C2680 / H65 Brass |
BS 1363-2 |
Customized per drawing |
Tin Plated |
Materials / Standard
Base Material
Free-cutting brass alloys (CuZn39Pb3 / CW614N / C36000), providing optimal machinability and stable electrical conductivity (approx. 28% IACS).
Insulative Sleeves
Flame-retardant POM (Polyoxymethylene) or Nylon (PA66) meeting UL94 V-0 ratings, secured over live and neutral pins to prevent accidental contact during insertion.
Applicable Standards
BS 1363-1: 13 A plugs, socket-outlets, adapters and connection units.
BS EN 12164 / ASTM B16: Standard specification for copper and copper-alloy rod and bar for free cutting.
RoHS & REACH
Restriction of hazardous substances compliant; raw material chemical composition verified via ICP-OES spectrometry.
Product Structure
Pin Body
Precision-turned or cold-forged main shaft providing structural rigidity and mechanical anchoring within the plug housing.
Terminal Section
Integrated wire-securing aperture, screw-clamp hole, or crimping barrel engineered for secure conductor termination without strand breakage.
Insulative Sleeve Interface
Mechanically locked or overmolded insulating sleeve covering the base of live and neutral pins, adhering strictly to the 9.0mm minimum creepage and clearance requirements under BS 1363.
Contact Tip
Chamfered or radius-machined insertion tip designed to reduce insertion force and prevent damage to socket shutter mechanisms.
Surface Finishes
Electroplated Nickel (2um - 5um)
Applied via rack or barrel plating to prevent atmospheric oxidation, reduce contact wear, and maintain low electrical resistance over operating lifecycles.
Bright Tin Plating (3um - 6um)
Enhances solderability and corrosion resistance for internal terminal connections.
Passivated Plain Brass
Ultrasonic degreased and chemically treated to remove residual machining oils and prevent surface tarnishing prior to assembly.
Application
Domestic molded and rewireable 3-pin plug tops (BS 1363).
Fused extension leads and multi-way power strips.
UK-compatible travel adapters and mobile chargers.
Commercial and industrial portable electrical appliances exported to UK, Ireland, Singapore, Hong Kong, Malaysia, and Gulf markets.
OEM Customization
Dimensional Modifications
Tailored pin lengths, varying terminal hole diameters, or custom thread sizing (M3 / M3.5) for terminal screws.
Material Alterations
Substitution of copper alloys based on specific conductivity or thermal resistance thresholds.
Sleeve Customization
Color-matched insulative sleeves or proprietary polymer formulations.
Prototyping & Tooling
In-house tool room enabling rapid prototype generation within 7-10 days based on 2D/3D CAD files (STEP, IGES, AutoCAD DXF).
Manufacturing Capability
-
Machining Infrastructure
CNC sliding head automatic lathes (Tsugami / Citizen) and multi-axis cam lathes achieving dimensional tolerances down to +/-0.01 mm.
-
Stamping Lines
High-speed precision mechanical presses ranging from 25T to 160T equipped with progressive dies for high-volume pin production.
-
Automated Assembly
Inline automated sleeve insertion and pressing stations ensuring retention force exceeding BS 1363 push-off requirements.
-
Daily Output
Up to 500,000 finished plug pins supported by multi-shift automated production cells.
QC
Dimensional Inspection
Key dimensions measured via optical comparator (Keyence IM Series) and digital micrometer systems with statistical process control (SPC) tracking.
Gauge Testing
100% functional checking using standard BS 1363 plug gauge blocks to verify pin spacing, alignment, and diameter limits.
Plating Thickness Verification
X-ray fluorescence (XRF) coating thickness analyzer measuring nickel and tin layer uniformity.
Mechanical Testing
Push-out force testers verifying structural retention between brass pins and insulating sleeves; torque testers for terminal screws.
Our Company
What to Specify When Ordering
When submitting an RFQ or purchase order, please provide the following parameters:
Pin Designation / Function
Live (sleeved), Neutral (sleeved), or Earth (solid/formed).
01
Dimensional Drawings
2D drawing detailing overall length, pin diameter, hole dimensions, and tolerance limits.
02
Material Grade
Specify brass alloy preference (e.g., C36000, CW614N) or compliance standard.
03
Plating Requirements
Finish type (Nickel, Tin) and minimum plating thickness.
04
Order Volume & Delivery Schedule
Annual quantity, batch size, and destination port for freight calculation.
05
